Branch Pipe / Nozzles
IS : 903
ISI
Stainless steel Material
ISI Marked

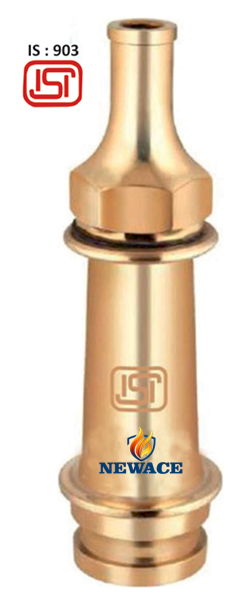

IS : 903
ISI
Gun Metal Material
ISI Marked

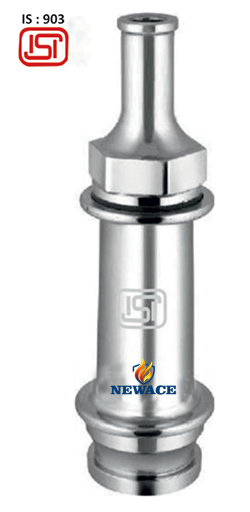

IS : 903
ISI
Aluminium Material
ISI Marked

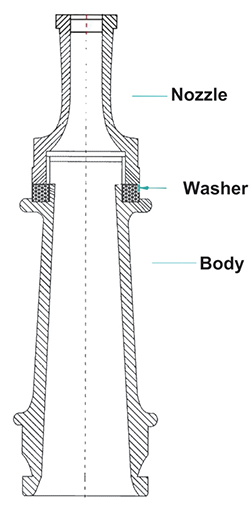

Short Branch Pipe
TECHNICAL SPECIFICATIONS
Size of Branch Pipe :
63mm
Size of Nozzles :
6mm,12mm, 15mm, 20mm and 25mm
Material :
Gun Metal/ Stainless Steel/ Aluminium Alloy
Conforming Specification :
IS: 903, ISI Marked
Performance Test
Hydrostatic Test (Body Test) :
Tested at 21 Kgf/cm2
Working Pressure :
7 Kgf/cm2
Other Ranges
Range :
52mm and 38mm
Finish:-
Natural Polished
Hologram:-
Sticker stuck on Nozzle
