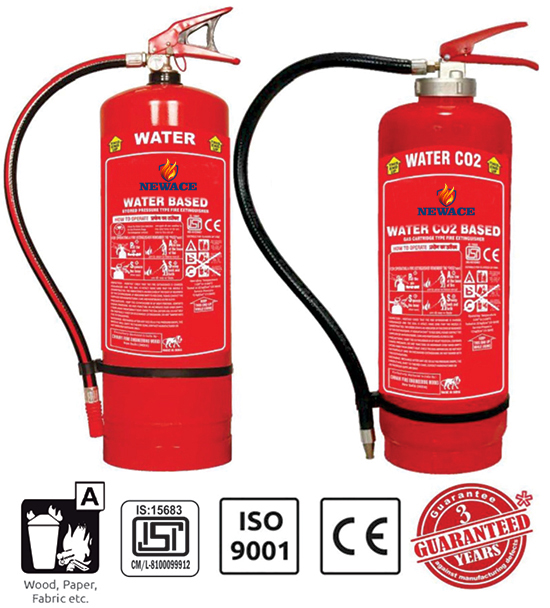

WATER TYPE
FIRE EXTINGUISHER
Suitable for Class A fire that is involving
Solid Organic Carbonaceous Material
Like Wood, Textile, Paper, Plastic
and Rubber.
TECHNICAL SPECIFICATIONS
| Capacity |
Water Type 9 Liters |
|---|---|
| BIS Specification | IS 15683:2018 |
| Type of Fire | A |
| Extinguisher Type | Stored Pressure/Gas Cartridge |
| Extinguishing Media | Soft Water |
| Min. Effective Discharge (%) | 95 |
| Min Jet Length (mtr) | 6 |
| Test Pressure (kgf/cm²) | 35 |
| Operation Position | Upright |
| Operating Temperature | +5° to +60°C |
| Fire Rating | 3A |
Caution
Do not use on Electrical Fire
Do not use on Electrical Fire

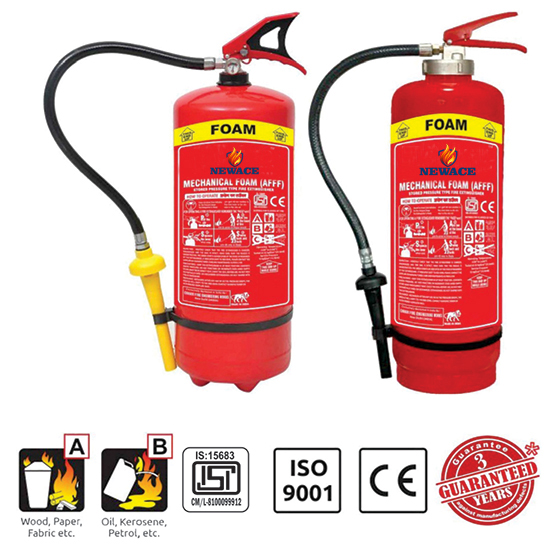

FOAM TYPE
FIRE EXTINGUISHER
Suitable for Class A & B fires that
is involving Carbonaceous
Materials, Flammable liquids,
Petroleum Products or where the
blanketing effect is essential.
TECHNICAL SPECIFICATIONS
| Capacity |
Foam Type 9 Liters |
|---|---|
| BIS Specification | IS 15683:2018 |
| Type of Fire | A & B |
| Extinguisher Type | Stored Pressure/Gas Cartridge |
| Extinguishing Media | Water & AFFF IS:4989 |
| Min. Effective Discharge (%) | 95 |
| Min Jet Length (mtr) | 6 |
| Test Pressure (kgf/cm²) | 35 |
| Operation Position | Upright |
| Operating Temperature | +5° to +60°C |
| Fire Rating | 3A 89B |
Caution
Do not use on Electrical Fire
Do not use on Electrical Fire
