Foam Making Branch
APPLICATION :
Foam Making Branch Pipe is a lightweight, easy to handle, ideal for Fire Brigade first line appliances and general industrial use.
It will operate from a water supply at particular pressure to Produce foam bubbles via 3m long pierce pick-up tube which can be supplied with the branch pipe.
FEATURES :
- Excellent Foam Quality.
- Lightweight compact self inducing high output Branch Pipe
- Longer foam throws Performance.
- Wide Operating Pressure Range.
- Suitable for all types of foam concentrate.
- Useful for Oil and Chemical Installations, General Industries, Airports and Fire Brigades.
TECHNICAL SPECIFICATIONS

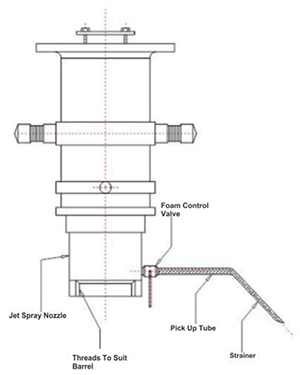

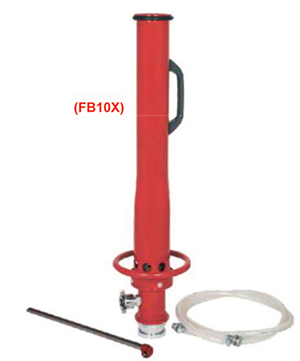

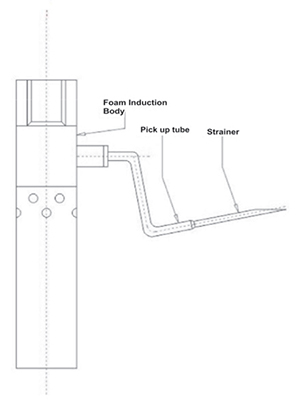

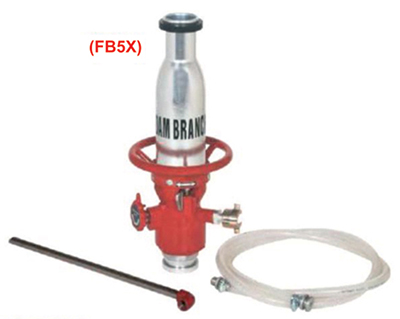

| FB 5X | FB 10X | |
|---|---|---|
| Design & Construction | As Per IS: 2097 | As Per IS: 2097 |
| Operating Pressure Range | 5.0 to 5.5 Bar | 8.0 to 8.5 Bar |
| Foam Liquid | P, FP, FFFP, AFFF, AR and S | Standard AFFF Compound |
| Foam Ratio | 1:10 | 1:10 |
| Discharge (LPM) | 225 to 250 | 450 to 500 |
| Jet Length (Maximum) | 20 meters | 24 meters |
| Coupling Inlet | 2.5” Instantaneous (M) | 2.5” Instantaneous (M) |
| Foam Pick-up | 20mm Quick Release | 20mm Quick Release |
| Material | Aluminum Alloy | Aluminum Alloy |
| Weight | 3.2 kg | 3.7 kg |
| Angle of Operation | 30° | 30° |
