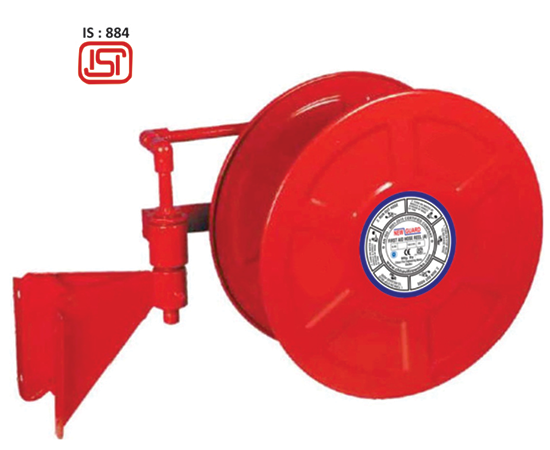

Hose Reel
IS : 884
First aid hose reel for fire fighting

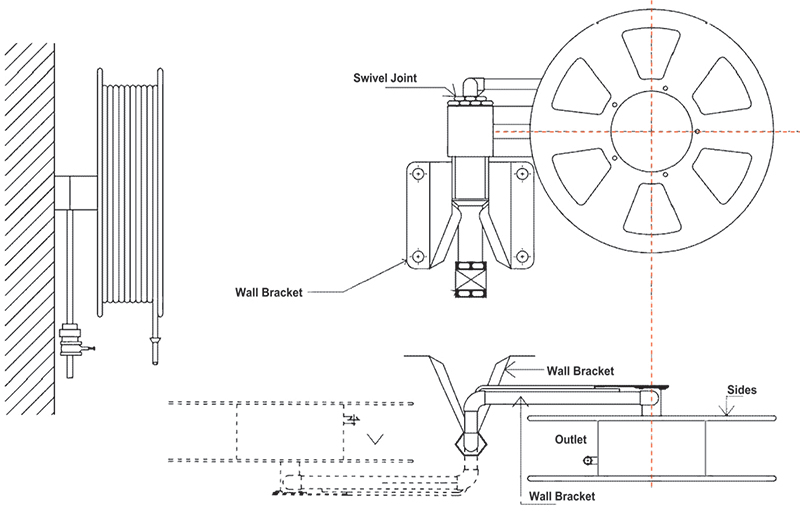

TECHNICAL SPECIFICATIONS
Type: Wall Mounted Fixed / Swinging Type
Hub IS : 513
Two Side Swivel Joint LTB - IS: 318
Pipes IS: 1239 (Part I, II)
Wall Bracket IS: 513
Sides MS Sheets IS: 513
Performance : Resistance to Leakage Test
Hydraulic Pressure : 21 kgf/cm2
Approval : ISI Marked from Bureau of Indian Standards
Performance Test:
- Hydrostatic Test (Body Test) : Tested at 21 kgf/cm2
- Range & Water Flow rate test at 7 kgf/cm2
- Discharge: 24 LPM
