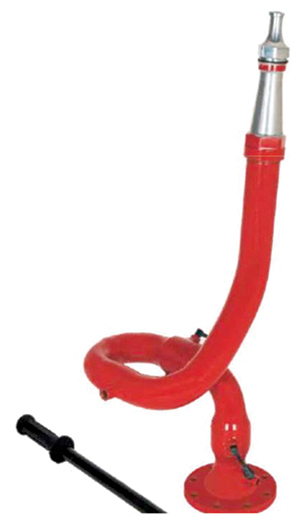

Stand Post Type Water Monitor
Application
- Oil Sector
- Refineries
- Chemical Plants
- Fertilizers
- Fire Tenders etc.
TECHNICAL SPECIFICATIONS
| Design & Construction | As Per IS:8442 |
| Material | Seamless Mild Steel Tubes |
| Size of Monitor | 63 mm / 80 mm / 100mm |
| Size of Inlet Flange | 80 mm / 100 mm |
| Construction | Welded from M.S. Seamless Pipes, Bends, etc. |
| Discharge Capacity | 1750 LPM / 2520 LPM / 3750 LPM |
| Horizontal Throw | 50 - 55 Meters |
| Rotation | 360° |
| Elevation | 85° to 30° |
| Joint | Swivel Type (Gun-Metal) |
| Jet Spray Nozzle | Gun Metal or Aluminium |
| Operative Pressure | 0.7 N/mm2 at Nozzle End |
| Leakage Pressure | To withstand a pressure of 2.3 N/mm2 |
Note : Also available in SS Body as per requirement.
